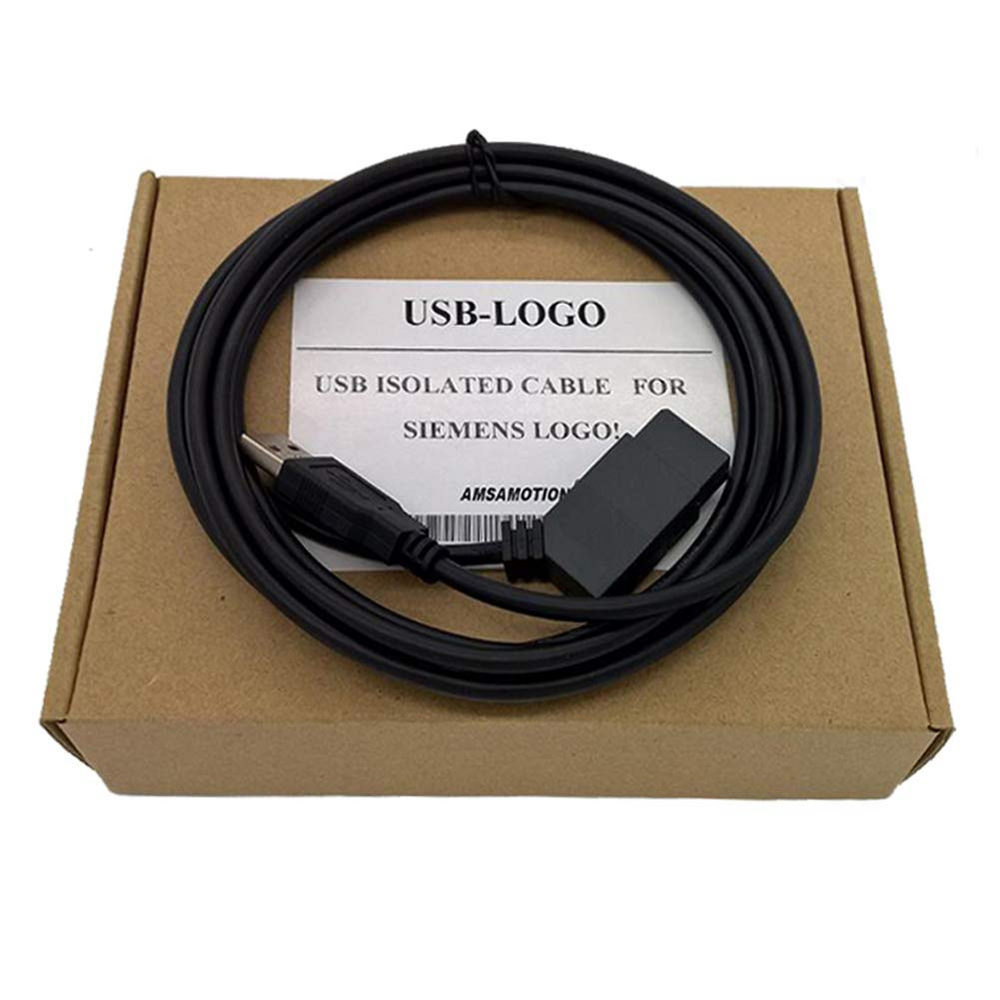

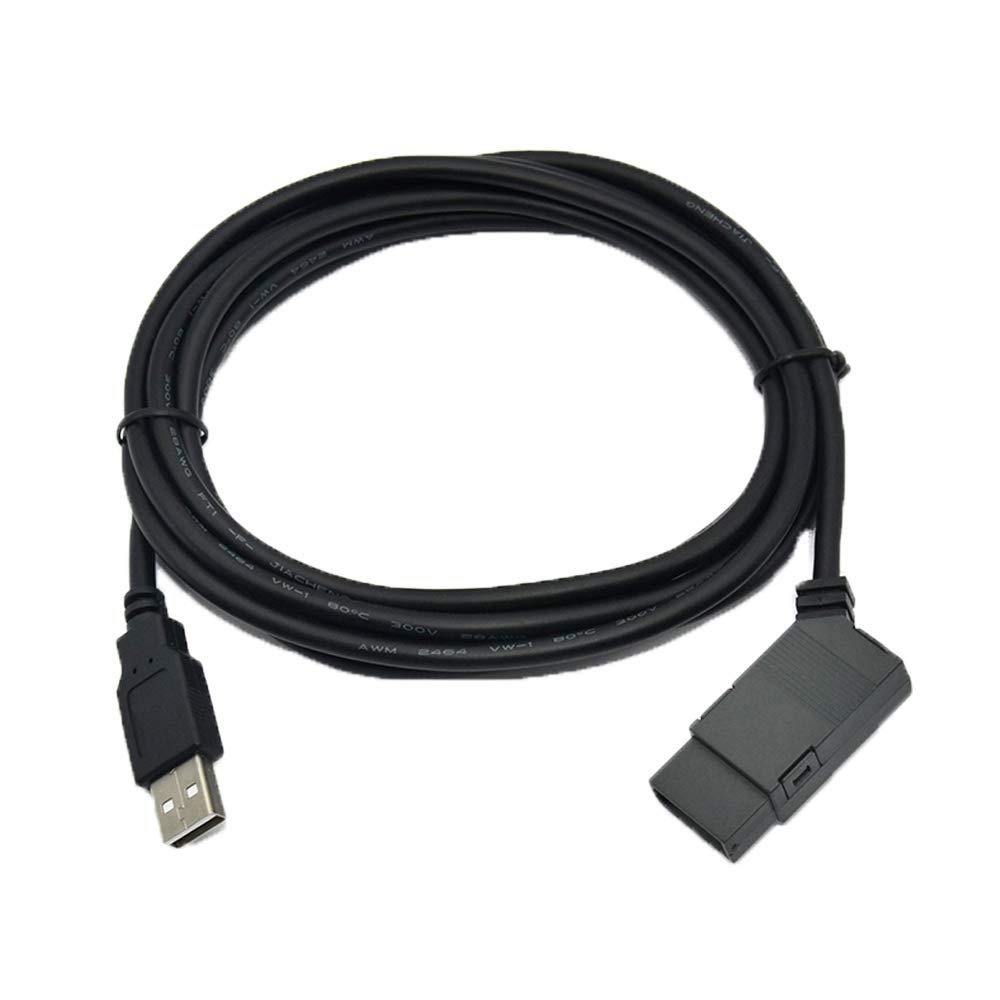

SIEMENS LOGO PLC CABLE - USB LOGO

SIEMENS LOGO PLC CABLE - USB LOGO Specification

Voltage Rating
300V

Capacity
Supports data transmission for LOGO! PLC Kg

Material
Other

Temperature
-20 C to +75 C Newton

Female End Type
USB LOGO

Connector
USB type-A to LOGO! PLC dedicated connector

Connector Type
USB A/B

Application
Communication interface between SIEMENS LOGO! PLC and PC

Pairs
2

Male End Type
USB Type-A Male

Sheild
Yes

Number of Conductor
4

Wire Gauge
24 AWG

Insulation
PVC

Cable Type
other

Length
3 meters Meter (m)

Jacket Material
PVC

Color
Black

Outer Diameter
5.0 mm Meter (m)

Flame Resistance Level
UL 94V-0

Cable Length
3 meters Meter (m)

Plug and Play
Yes

Transfer Rate
Up to 12 Mbps (USB 2.0 standard)

Minimum Bend Radius
30 mm

Cable Structure
Twisted pair with shielding

Operating Humidity
10% to 95% non-condensing

EMI Protection
Full coverage

RoHS Status
Compliant

Shielding Coverage
95% Braid

Compatible Devices
SIEMENS LOGO! PLC series 0BA6, 0BA7

Contact Material
Gold-plated contacts

SIEMENS LOGO PLC CABLE - USB LOGO Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Days

About SIEMENS LOGO PLC CABLE - USB LOGO

Suitable Siemens LOGO Series PLC programming cable Length: 3metersPls check the interface before your order the product: PC-CABLE: PC side is 9pin female plug RS232port, PLC Side 6pin square shape

Usage/Application	Logo PLC programming
Brand	Siemens compatible
Size	2 Mtr approx
Packaging Type	Box packing
Conductor	copper conductor
Power/Voltage	USB Powered
Color	Black
Cable Type	USB

Dependable Connectivity for SIEMENS LOGO! PLCs

Streamline your data exchange between SIEMENS LOGO! PLC series 0BA6 or 0BA7 and computers with this dedicated communication cable. Its 3-meter reach paired with robust shielding and gold-plated contacts assures stable, interference-free connectivity. Designed for easy installation, this cable ensures minimal downtime during setup.

High-Speed Data Transfer and Full EMI Protection

This USB LOGO cable delivers data transfer rates up to 12 Mbps, conforming to USB 2.0 standards. It incorporates twisted pair structure and 95% braid coverage, offering full electromagnetic interference (EMI) protection. Whether in a factory or office, your data remains secure and transmission speeds remain fast.

Engineered for Reliability and Safety

The cable's construction prioritizes durability and safety with a minimum bend radius of 30 mm, UL 94V-0 flame resistance, and RoHS compliance. The outer PVC jacket protects against harsh temperatures (-20C to +75C), making the cable suitable for various industrial settings. Molded connectors and gold-plated contacts maximize lifespan and connectivity integrity.

FAQ's of SIEMENS LOGO PLC CABLE - USB LOGO:

Q: How do I use the SIEMENS LOGO PLC Cable - USB LOGO for communication with my PLC?

A: Simply plug the USB Type-A connector into your PC and attach the dedicated connector to your SIEMENS LOGO! PLC (series 0BA6 or 0BA7). The plug-and-play feature means your computer should automatically detect the cable, requiring no additional drivers for standard operation.

Q: What devices are compatible with this USB LOGO cable?

A: This cable is specifically designed to support SIEMENS LOGO! PLC series 0BA6 and 0BA7, ensuring stable communication between your PLC and a PC via USB connection.

Q: When should I consider replacing the cable?

A: You should consider replacing the cable if you notice visibly frayed insulation, consistent communication failures, or frequent connection drops, despite using compatible devices and correct procedures.

Q: Where can I use the SIEMENS LOGO PLC Cable - USB LOGO?

A: This cable is ideal for industrial, laboratory, and office environments where SIEMENS LOGO! PLCs are in operation, thanks to its strong EMI protection, flame resistance, and wide temperature and humidity tolerance.

Q: What is the process for transferring data with this cable?

A: After connecting the cable between your SIEMENS LOGO! PLC and PC, use SIEMENS LOGO! software to initiate communication, program transfers, or data retrieval as needed. The USB 2.0 interface ensures swift and reliable data transmission.

Q: How does the cable ensure data integrity and reduce signal interference?

A: The cable features twisted pair wiring, 95% braid shielding, and gold-plated contacts, all of which work together to minimize electromagnetic interference, provide secure connections, and enhance signal reliability.

Q: What are the primary benefits of using this specific cable for SIEMENS LOGO! PLCs?

A: This cable offers high-speed data transfer, outstanding EMI protection, plug-and-play ease, and robust build quality. It's engineered for industrial performance while remaining convenient for everyday use, making it a dependable tool for automation professionals.
